WHAT IS
GEOMEMBRANE?

Geomembranes are impermeable polymeric liner sheets used as protective barriers and insulation systems in industrial, environmental, agricultural, and civil engineering projects. They provide excellent resistance against UV radiation, chemicals, moisture, and environmental conditions while offering long service life and high flexibility.

Types of Geomembranes:

  • HDPE Geomembrane (High Density Polyethylene)
    High chemical resistance, UV resistance, and durability for heavy-duty industrial.
  • LLDPE Geomembrane (Linear Low Density Polyethylene)
    More flexible & suitable for tunnels, settlements, and requiring high elongation.
  • PVC Geomembrane
    Flexible membrane used for insulation and construction applications.
  • VLDPE, EPDM, CSPE, FPP and specialty membranes
    Designed for specific industrial and environmental applications.

APPLICATIONS

  • Agricultural water ponds
  • Aquaculture and fish farms

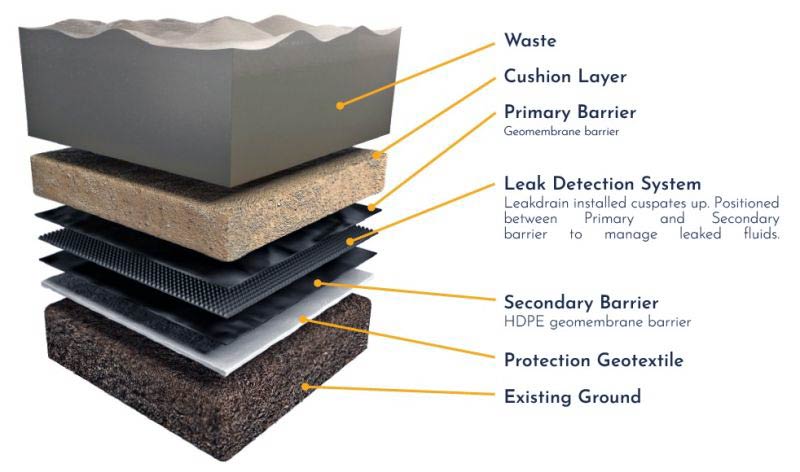

  • Landfills and waste containment
  • Oil, gas & petrochemical industries
  • Mining and heap leach pads
  • Water & wastewater facilities
  • Irrigation canals
  • Tunnels and hydraulic structures
  • Green roofs and waterproofing systems
  • Artificial lakes and industrial lagoons & etc
Artificial lakes
Agricultural Pools
Tunnels Construction
Drainage Structures
Landfills
Oil & Petroleum
Dams
Coastal Engineering
Mining
Waterproofing
Retaining Concrete
Green roofs
Irrigation canals
fish farms

Main Functions & Advantages

Key geomembrane functions include:

  • Complete liquid and gas containment
  • Chemical resistance against acids and alkalis
  • Excellent UV and weather resistance
  • High flexibility and elongation
  • Strong puncture and impact resistance
  • Long-term durability
  • Easy installation and transportation
  • Resistance against biological and environmental damage

PRODUCTS
SPECIFICATION

Geomembranes manufactured by Yalda Co., a subsidiary of Zarif Mosavar Industrial Group, are produced according to GRI GM13 international standards and approved by SGS Iran.
Technical Specifications (HDPE)

PARAMETER METHOD UNIT RESULTS(GM100H) RESULTS(GM150H) RESULTS(GM200H)
Thickness
ASTM D5199
mm
1.00
1.50
2.00
Density
ASTM D1505
GR.ml-1
Min.0.940
Min.0.940
Min.0.940
Tensile Strength at Yield
ASTM D6693
KN.ml-1
Min.15
Min.22
Min.29
Tensile Strength at Break
ASTM D6693
KN.ml-1
Min.27
Min.40
Min.53
Tensile Elongation at Yield
ASTM D6693
%
Min.12
Min.12
Min.12
Tensile Elongation at Break
ASTM D6693
%
Min.700
Min.700
Min.700
Tear Resistance
ASTM D1004
N
Min.125
Min.187
Min.249
Puncher Resistance
ASTM D4833
N
Min.320
Min.480
Min.640
Carbon Black Content
ASTM D1603
%
2.1
2.1
2.1
Carbon Black Dispersion
ASTM D5596
–
9 in cat.1
9 in cat.1
9 in cat.1


Technical Specifications (LLDPE)

PARAMETER METHOD UNIT RESULTS (GM150L)
Thickness
ASTM D5199
mm
1.5
Tensile Strength at Break
ASTM D6693
N.mm-1
Min.40
Tensile Elongation at Break
ASTM D6693
%
Min.800
2% Modulus
ASTM D5323
N.mm-1
Max.630
Puncture Resistance
ASTM D4833
N
Min.370
Tear Resistance
ASTM D1004
N
Min.150
Carbon Black Content
ASTM D1603
2.1
Carbon Black Dispersion
ASTM D5596
–
9 in cat.1

Key Features:

  • UV resistant
  • Chemical resistant
  • High tensile and impact strength
  • Excellent weldability
  • 100% impermeable
  • Long service life and stable performance under harsh environmental conditions

For more information and order registration, call to +983138350000 or please visit ZarifMosavar industrial Website.
